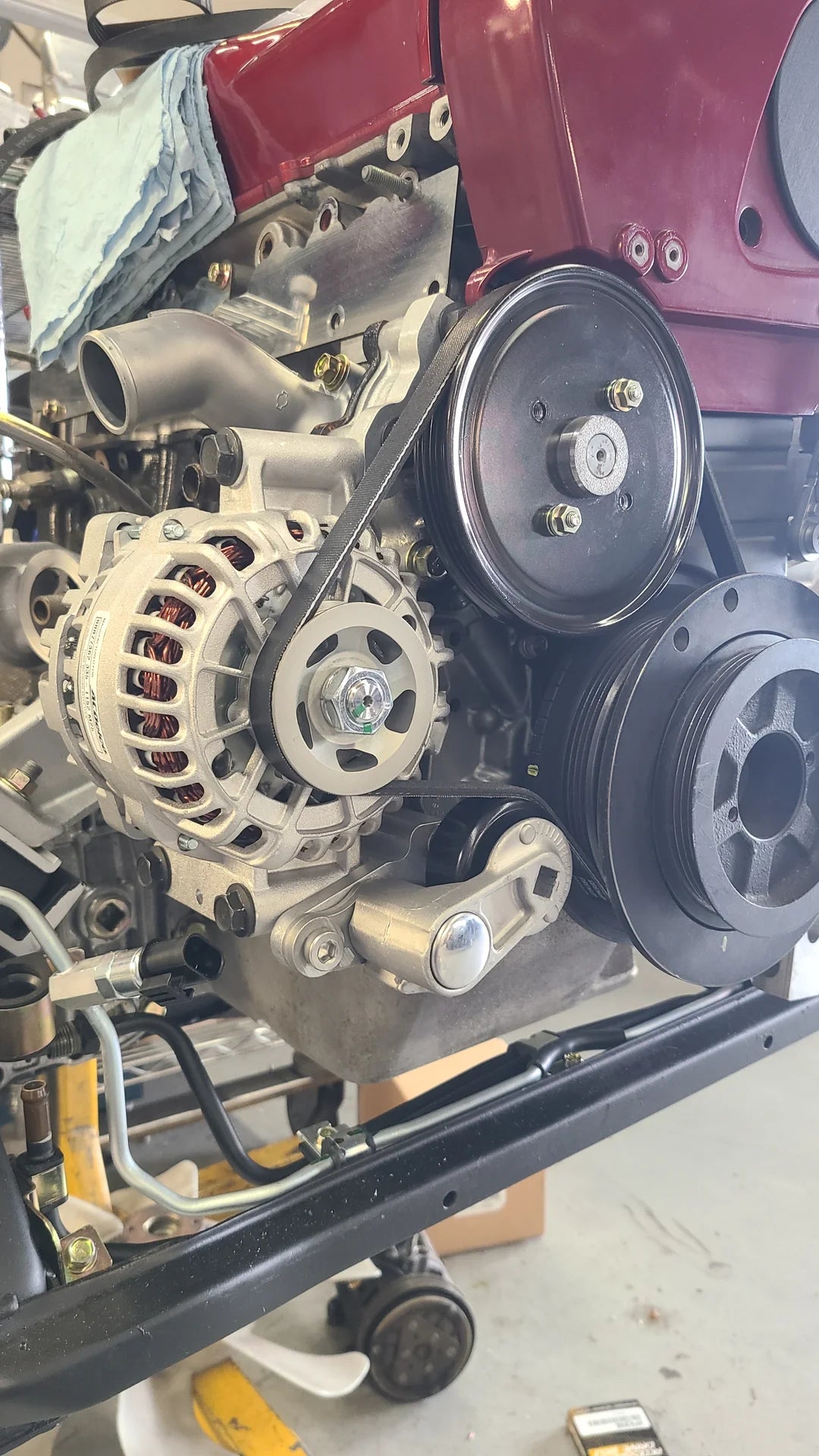

U.P.G. RB alternator upgrade ‐Complete System-

135amp STD control

OEM balancer with RB26 water pump pulley

We have designed an alternator kit in house. We have thrown out the standard ways of mounting and tensioning.  We have done exhaustive testing and we feel we have come up with the next big thing in alternator upgrades for the RB engine.

Our alternator system utilizes an off the shelf alternator available everywhere in the US.  No need to look for a very specific and very expensive alternator.

Our recommendations for sizing your alternator to your car.

• The 135 unit is sized for those running 2 fuel pumps and other higher load parts. The wiring size on the R32 is right at the limit and we recommend upping the size and fuse. For the R33/34 the wiring is a bit bigger and should be ok


The complete alternator systems will come with:

135amp will be the Terra power unit

Our system will include

• Upper and lower mounting brackets
• Auto tensioner
• All mounting hardware
• Alternator with plug and play sub harness
• Belt

*****COLOR CODING FOR THE HARDWARE******

• RED x1 upper alternator to upper bracket
• YELLOW x2 upper bracket to water pump
• BLUE X2 lower alternator to lower bracket
